R8FGH

8-Channel Dual Antenna Receiver

3ms Response

Real-time Built-In Telemetry of Max 14S(60V) Model Battery Voltage

3-12V Wide Voltage Input, High Voltage Servo Supported

FHSS Hopping Communication, Anti-Interference

FHSS spread spectrum algorithm and 67-channel pseudo-random frequency hopping make excellent anti-interference performance,

perfect for multiplayer completely synchronously, and helps protect from fuel engine sparks and ensures the safety of enjoying fuel-powered model cars.

3ms* Response

When bound to RC8X, servo speed can be selected from 14ms, 4ms, and 3ms, if bound to other transmitters, it defaults to 14ms. 14ms is suggested if connected with the analog servo while 4ms or 3ms is suggested selected if connected with the digital servo.

*Attention: It is necessary to update the firmware of RC8X to V1.1.5 or above, and then select FHSS V2 protocol to display this option.

600 Meters Control Distance

The stable remote-control distance of R8FGH is up to 600 meters on the ground.

Control with the camera and the RC8X dual display function/display screen/goggle makes the drivers enjoy FPV fun.

Gyro Integrated

Customizable Gyro Sensitivity

The integrated high-performance gyro adopts the software filter and PID algorithm,

timely and precisely corrects the sensitivity and improves the stability.

Its good flexibility to different models and fields easily achieves professional performance even with drift cars.

Gyro sensitivity can be adjusted by the PS3 switch to maximize or minimize the gyro function.

Real-time Built-In Telemetry of Model Battery Voltage

Telemetry is capable of RSSI, receiver, and model battery voltage.

RSSI and receiver voltage data will be displayed once the binding is complete.

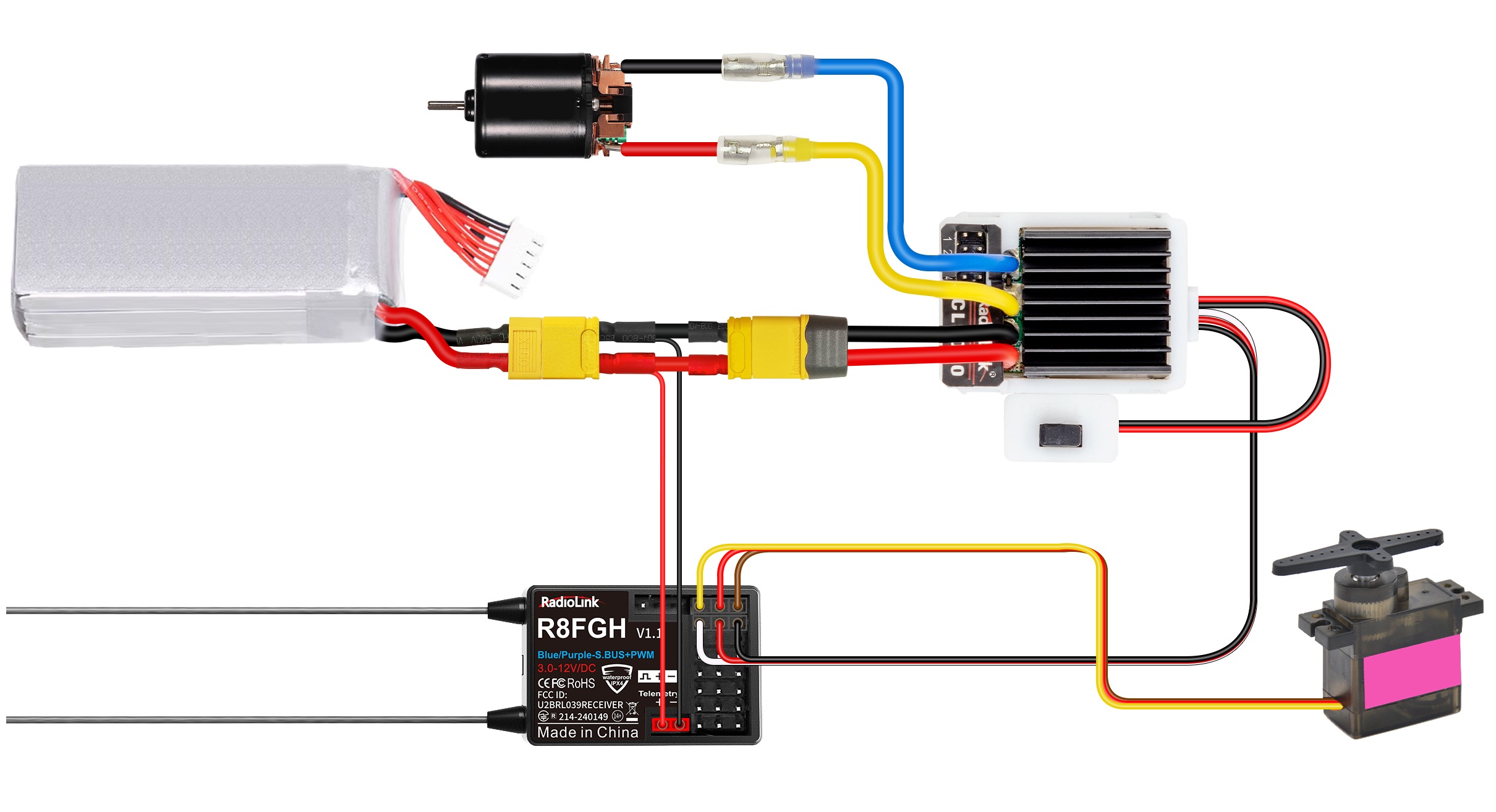

The model voltage will be displayed by connecting the wire to the ESC, battery,

and Telemetry port of receiver R8FGH, no extra module is needed.

Telemetry of maximum 14S (60V) battery supported.

PWM and SBUS Signal-supported

PWM working mode: Green LED or green plus red LED always on indicates PWM signal output, 8 channels total.

PWM+SBUS working mode: Blue LED always on indicates PWM+SBUS signals output.

CH1 to CH7 are with PWM signal output while CH8 with SBUS signal output.

Players can personalize signal output mode to fully enjoy the fun of a model bait boat or car with FPV.

Water Splash Proof (IPX4)

The PCB board and pins of R8FGH have the same waterproof treatment as the mobile phone,

that is, nano-coating technology treatment and the waterproof grade is IPX4.

IPX4: The IP×× rating standard recommended by the International Electrotechnical Commission (IEC).

Subsidiary ID

Rescue, Towing, Parent-child Entertainment, and Friend Teaching in One Control

Capable of designating a subsidiary ID among multiple binding receivers to meet special needs such as long-distance rescue with model cars/boats.

Example of the use of the Subsidiary ID ①: Ship No. 1 is parked in the middle of the lake due to insufficient engine battery voltage.

At this time, ship No. 2 can be switched to tow to rescue.

Example of the use of the Subsidiary ID Mode ②: After the No. 1 trailer consigns the No. 2 vehicle to the designated address. Switch the Subsidiary ID number of the remote control from No. 1 to No. 2 to control the No. 2 car, and let the No. 2 car reverse from the trailer.

Anti-polarity Connect Protection, Power by Wide Voltage

Even if the polarities are mistakenly connected, the receiver will not get damaged.

The power of 3-12V supports high voltage servo.

Wide Transmitters Compatible

R8FGH is compatible with RadioLink transmitters such as RC8X, RC6GS V3, RC4GS V3, T8FB(BT), T8S(BT),

RC6GS V2, RC4GS V2, RC6GS, RC4GS, T8FB(OTG), and T8S(OTG).

Specifications

Dimensions: L*W*H =35*24*13.5mm (1.38” *0.94” *0.53”)

Antenna Length: 205mm (8.07”)

Weight: 10.5g(0.37oz)

Operating Voltage: 3-12V

Operating Current: 35mA@5V

Channel: 8 channels

Signals: SBUS+PWM

Response Latency:  3ms, 4ms, 14ms can be selected

Telemetry: Real-time built-in telemetry of the model battery voltage, RSSI, and receiver voltage

Model Battery Voltage Telemetry: 3.0-60

Gyro: Receiver with gyro-integrated, the customizable gyro sensitivity

Water Splash Proof: The waterproof grade is IPX4

Applicable Model Types: Car (Including Crawlers/Tanks/Caterpillars)/Boat/Robot

Frequencies Band: 2.4GHz ISM band (2400MHz~2483.5MHz)

Spread Spectrum Mode: FHSS, 67 channels pseudo-random frequency hopping

Control Distance: 600 meters

Compatible transmitter: RC8X/RC6GS V3/RC4GS V3/

RC6GS V2/RC4GS V2/RC6GS (3-position switch version)/RC4GS (version with P.D AFTER 180101) /

T8FB(BT)/T8S(BT)/T8FB(OTG)/T8S(OTG)
